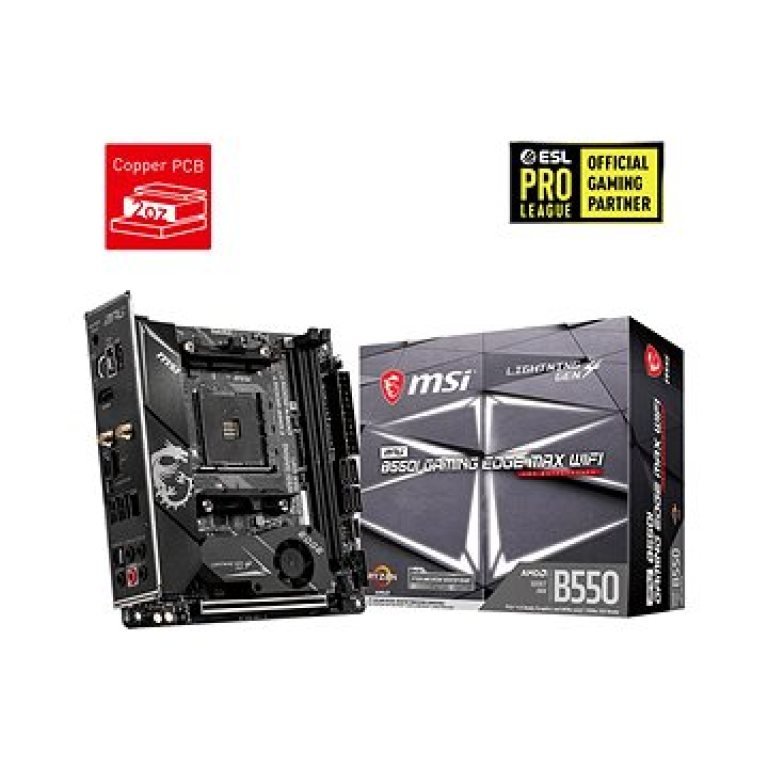

MSI MPG B550I GAMING EDGE MAX WIFI

MPG B550I GAMING EDGE MAX WIFI Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Supports DDR4 Memory, up to 4600(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection HDMI 2.1: Support 4K display with up to 4096x2160@60Hz Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Audio Boost: Reward your ears with studio grade sound quality Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions. CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors CHIPSET AMD B550 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB*Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDECSupports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE1DPC 1R max speed 4600 MHZ1DPC 2R max speed 4000 MHZDual channel memory architectureSupports non-ECC UDIMM memorySupports un-buffered memory*Please refer www.msi.com for more information on compatible memory. EXPANSION SLOTS 1x PCIe 4.0 / 3.0 x16 slot*The supported specification depends on installed processor. ONBOARD GRAPHICS 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz*Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3Maximum shared memory of 2048 MB*Available for the processor with integrated graphics. STORAGE AMD B550 Chipset4x SATA 6Gb/s ports2x M.2 slots [Key M]M2 1 slot [from AMD Processor]Supports PCIe 4.0/3.0 x4*Supports SATA 6Gb/sSupports 2260/ 2280 storage devicesM2_2 slot [from AMD B550 chipset]Supports PCIe 3.0x4Supports 2280 storage devices*The supported specification depends on installed processor. RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices USB AMD B550 Chipset3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector]4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]AMD Processor2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel AUDIO Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller WIRELESS LAN & BLUETOOTH® Intel® AX200The Wireless module is pre-installed in the M.2 [Key-E] slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.1 INTERNAL CONNECTORS 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors2x M.2 slots [M-Key]1x USB 3.2 Gen 1 5Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]1x USB 2.0 connector [supports additional 2 USB 2.0 ports]1x 4-pin CPU fan connector1x 4-pin water-pump fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x 3-pin RAINBOW LED connector1x Clear CMOS jumper4x EZ Debug LED BACK PANEL PORTS USB 2.0WiFi / BluetoothUSB 3.2 Gen 2 10Gbps(Type-A)2.5G LANHD Audio ConnectorsFlash BIOS ButtonPS/2 Combo PortHDMI 2.1USB 3.2 Gen 2 10Gbps(Type-C)Clear CMOSUSB 3.2 Gen 1 5Gbops(Type-A)Optical S/PDIF OUTMPG B550I GAMING EDGE WIFI I/O CONTROLLER NUVOTON NCT6687-R Controller Chip DIMENSIONS Mini-ITX Form Factor6.7 in. x 6.7 in. (17.0 cm x 17.0 cm).
