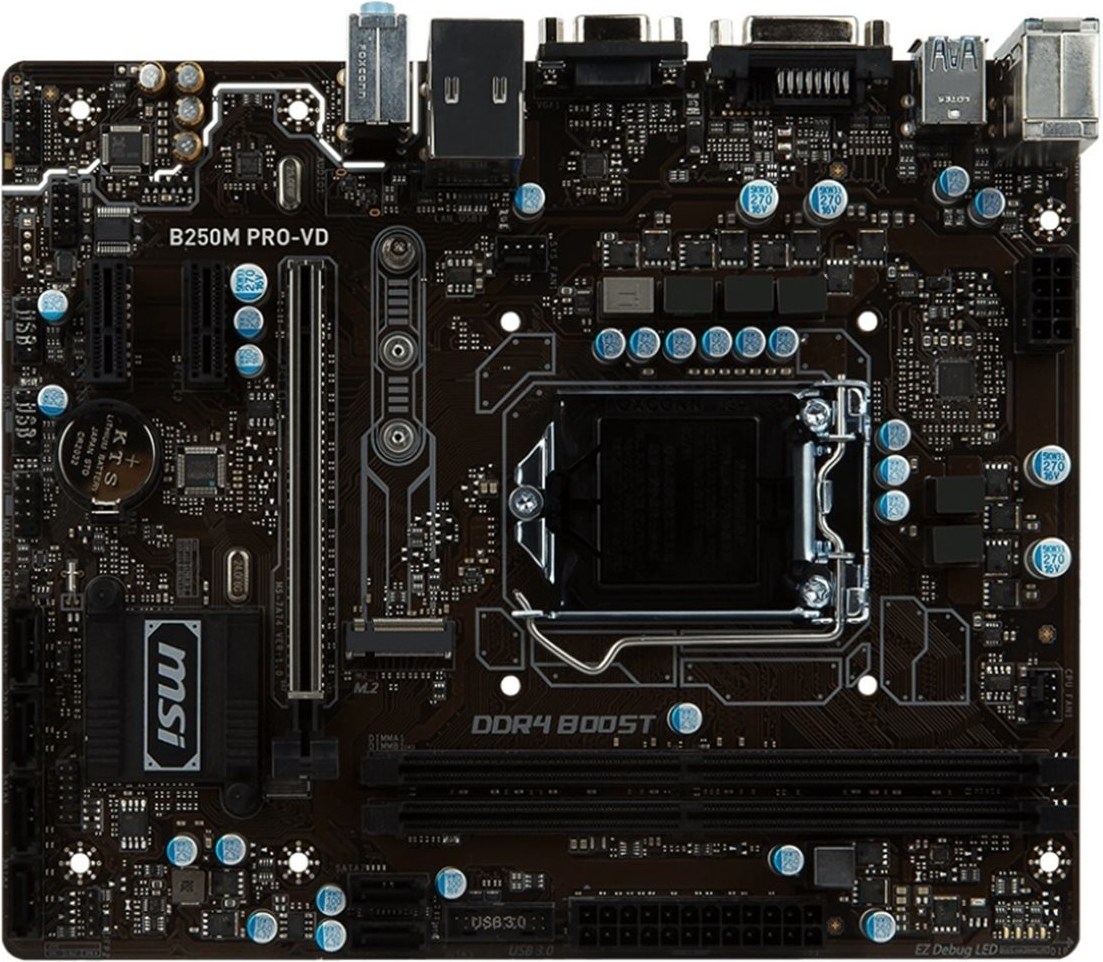

MSI B250M PRO-VD

CPU


• Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

* This function will be supported depend on the CPU.



Chipset


• Intel® B250 Chipset



Main Memory


• 2 x DDR4 memory slots, support up to 32GB

- 7th Gen processors support DDR4 2400/ 2133 MHz*

- 6th Gen processors support DDR4 2133 MHz*

• Dual channel memory architecture

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

* Please refer to www.msi.com for more information on compatible memory.

** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode.



Slots


• 1 x PCIe 3.0 x16 slots

• 2 x PCIe 3.0 x1 slots



Onboard Graphics


• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz



Storage


• Intel® B250 Chipset

• 6 x SATA 6Gb/s ports

• 1 x M.2 slots (Key M)*

- Support up to PCIe 3.0 x4 and SATA 6Gb/

- Supports 2242/ 2260/ 2280 storage devices

- Intel® Optane™ Memory Ready

- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host card**



* The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.

** The Turbo U.2 Host Card is not included, please purchase separately.



USB


• Intel® B250 Chipset

- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

ƒ- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)



Audio


• Realtek® ALC887 Codec

- 7.1-Channel High Definition Audio



LAN


• 1 x Realtek® RTL8111H Gigabit LAN controller



Internal I/O Connectors


- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 6 x SATA 6Gb/s connectors

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

- 1 x 4-pin CPU fan connector

- 1 x 4-pin system fan connector

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x Chassis Intrusion connector

- 1 x Serial Port connector

- 1 x Clear CMOS jumper



Back Panel I/O Ports


- 1 x PS/2 keyborard/ mouse combo port

- 2 x USB 2.0 ports

- 1 x DVI-D port

- 1 x VGA port

- 1 x LAN (RJ45) port

- 4 x USB 3.1 Gen1 ports

- 3 x audio jacks



Dimension


• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)

• Micro-ATX Form Factor



Mounting


• 6 mounting holes
