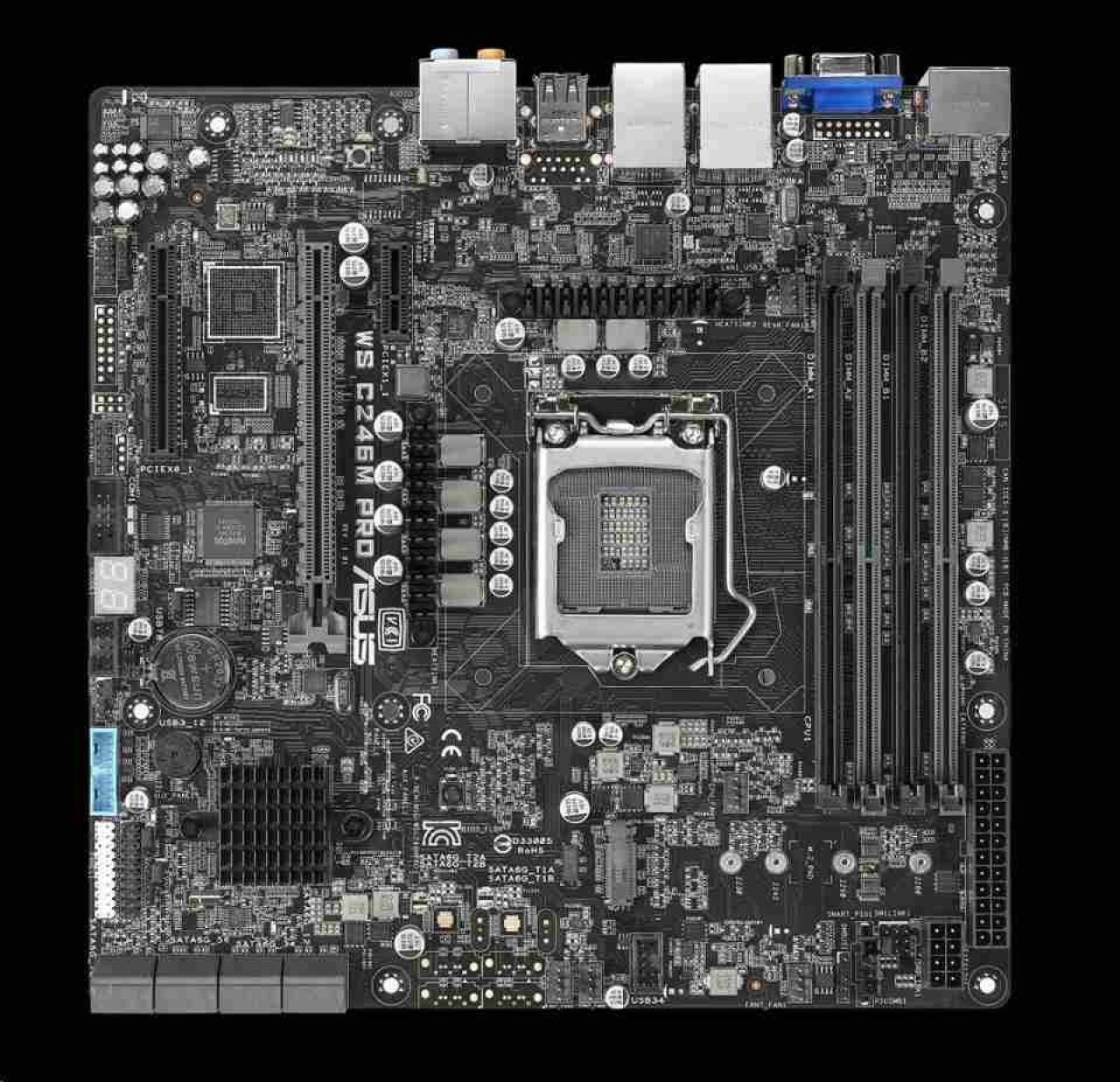

PodrobnostiWS C246M PROCompact, rack-optimized Intel® LGA1151 micro-ATX motherboard with M.2, USB 3.1 Gen2 connectors and dual Gigabit LAN
- Rack-optimized design for better cooling efficiency and stability
- Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
- Accelerated data-transfer speeds of up to 32Gbps with M.2
- Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
- Dual Intel® Gigabit LAN with teaming support
- ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
TECHNICAL SPECIFICATIONSProcessor / System Bus1 x Socket LGA1151Intel® Xeon® processor E-2100 familyThe 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® ProcessorIntel® Core™ i9/i7/i5/i3 processorsIntel® Xeon® E ProcessorsE-2100/E-2200*Refer to support page for more informationCore LogicIntel® C246 ChipsetMemoryTotal Slots: 4 (2-channel)Capacity: Maximum up to 128GB UDIMMMemory Type:Dual Channel DDR4 2666/2400 UDIMM non ECC and with ECCMemory Size:32GB, 16GB, 8GB UDIMM* Refer to support page for more informationExpansion SlotsTotal Slot: 3Slot Location 1: PCI-E x1 (Gen2 X1 Link)Slot Location 2: PCI-E x16 (Gen3 X16 Link)Slot Location 3: PCI-E x8 (Gen3 X4 Link)Form FactorU ATX (244 x 244mm)StorageSATA Controller:Intel® C246 Chipset8 x SATA3 6Gb/s portsIntel® Rapid Storage Technology(RST) (For Linux/Windows)(Support Software RAID)SAS Controller:ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)Networking1 x Intel® I210AT1 x i219-LMOn Board I/O2 x USB 2.0 pin header1 x USB 3.0 pin header1 x M.2 Connector, NGFF Type : 2280/2260/22421 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)1 x COM port1 x TPM header1 x S/PDIF Out (Optical)Back I/O Ports2 x USB 3.1 ports (Type A)2 x USB 3.0 ports2 x USB 2.0 ports1 x HDMI1 x DisplayPort1 x VGA2 x RJ-45 ports8-channel Audio I/O ports (5+1 Audio jacks)Management SolutionWfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXEAccessoriesGift Box (1-in-1)1 x Support CD1 x I/O shield8 x SATA 6G cables1 x Com port cable1 x User manual1 x Quick start guide1 x M.2 screwBulk Pack (10-in-1)1 x Support CD10 x I/O shield80 x SATA 6G cables10 x Com port cable1 x User manual1 x Quick start guide10 x M.2 screwMonitoringCPU TemperatureFan RPM.
