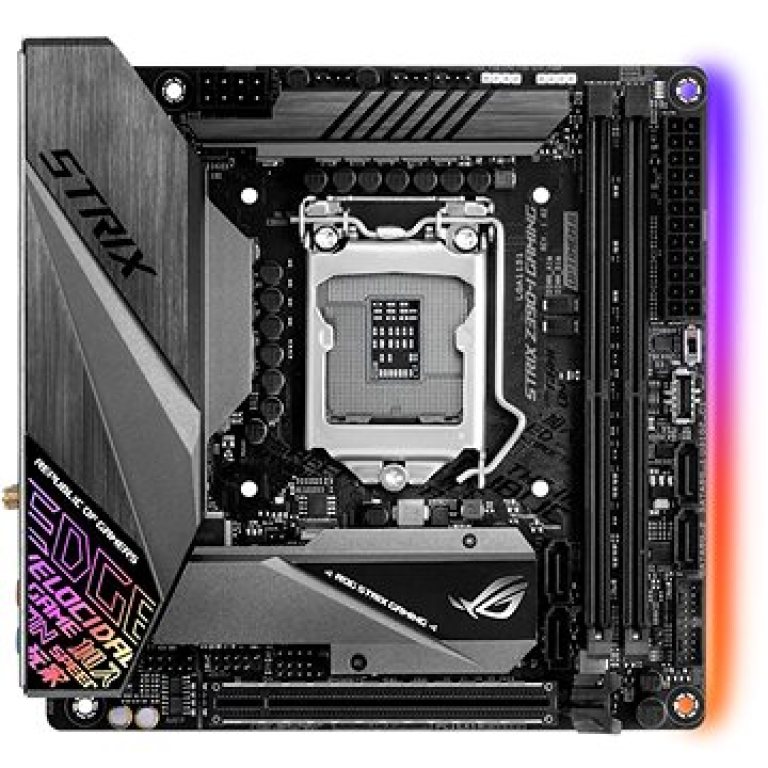

PodrobnostiROG STRIX Z390-I GAMINGIntel Z390 LGA 1151 mini-ITX gaming motherboard with integrated I/O shield & VRM heatsink, Intel Wi-Fi, DDR4 4600+, M.2, SATA 6Gbps, HDMI 2.0, and USB 3.1 Gen 2
- LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- Comprehensive cooling: Integrated I/O shield and VRM heatsink, Double decker M.2 heatsink
- 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance
TECHNICAL SPECIFICATIONSCPUIntel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* Refer to www.asus.com for CPU support listChipsetIntel® Z390MemorySocket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors2 x DIMM, Max. 64GB, DDR4 4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.) /3866(O.C.)/3733(O.C.) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated Graphics Processor- Intel® HD Graphics support - Supports HDMI 2.0 with max. resolution 4096 x 2160 @ / 60 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Supports up to 3 displays simultaneouslyExpansion Slots1 x PCIe 3.0 x16 (x16 mode)StorageIntel® Z390 Chipset: 2 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*24 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Optane™ Memory Ready *3LANIntel® I219VAnti-surge LANGuardROG GameFirst TechnologyWireless Data NetworkIntel® Wireless-AC 9560Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMOBluetoothBluetooth® 5.0AudioROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual Headphone Amplifiers- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *4Audio Feature:- SupremeFX Shielding™ Technology- Optical S/PDIF out port(s) at back panel- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Sonic Radar III- Sonic Studio III + Sonic Studio LinkUSB PortsIntel® Z390 Chipset: 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset: 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)Intel® Z390 Chipset: 5 x USB 3.1 Gen 1 port(s) (3 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board)Intel® Z390 Chipset: 4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)ROG Exclusive FeaturesROG Exclusive Software- RAMCache III- CPU-Z- GameFirst VSpecial FeaturesOC Design - ASUS PRO Clock Technology- Full BCLK range for extreme overclocking performance5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.TPU- Auto Tuning, TurboV, GPU BoostGamer''s Guardian:- DRAM Overcurrent Protection- Highly Durable Components- DIGI+ VRM- SafeSlot- ESD Guards on LAN, Audio,and USB portsASUS Optimem II:- Optimem (Improved DDR4 stability)- Improved DDR4 StabilityAURA:- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devices- Aura Addressable Strip Header(s)ASUS Exclusive Features:- AI Suite 3- Ai Charger ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design:- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM Gaming Aesthetics:- AURA-RGB LightingDigi+VRMTurbo APPM.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)Back I/O Ports1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 1 x USB 3.1 Gen 1 (black) Type-C, 2 x USB 2.0 1 x Optical S/PDIF out5 x Audio jack(s)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)Internal I/O Ports1 x Aura Addressable Strip Header(s)1 x AAFP connector1 x Aura RGB Strip Header(s)1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Internal speaker connector(s)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x MemOK! II switch(es)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x USB 3.1 Gen 2 front panel connectorAccessoriesUser''s manualM.2 2242 mounting kit4 x SATA 6Gb/s cable(s)2 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x CABLE TIE BLACK1 x ROG Strix stickers1 x 10-in-1 ROG cable label1 x Extension cable for Addressable LED1 x Panel cableBIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.ManageabilityWOL, PXEOperating SystemWindows® 10 64-bitForm FactorMini ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)Note*1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.*2 When the M.2_1 Socket is operating in SATA mode, SATA port 2 will be disabled. Adjust BIOS settings to use a SATA device.*3 Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
