Zyxel GS1900-8

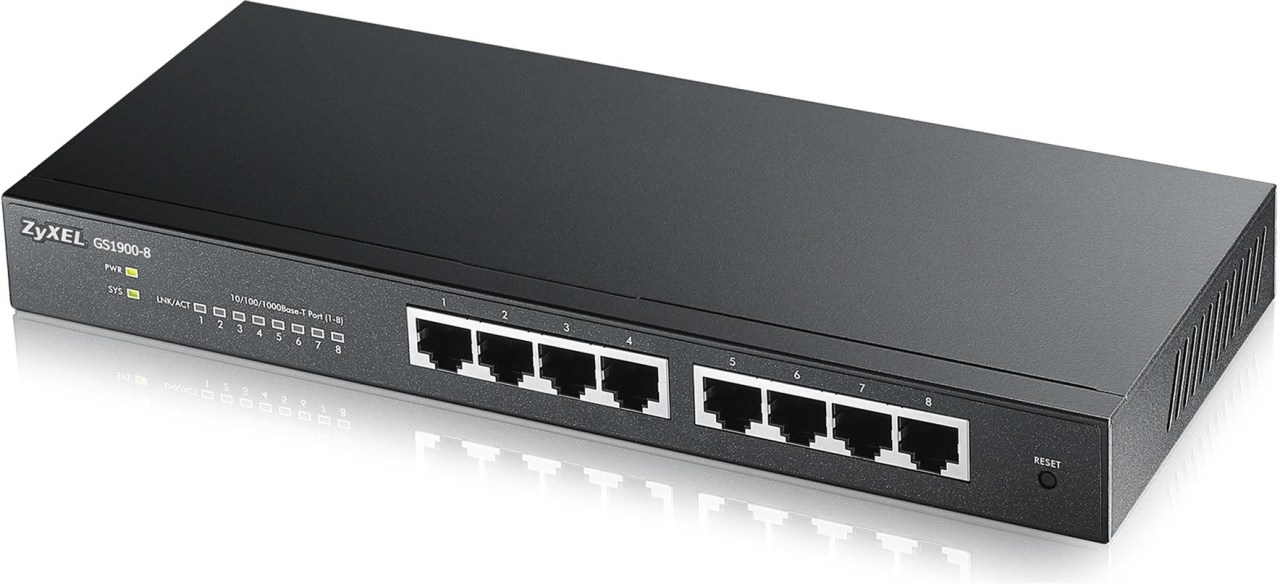

ZyXEL GS1900-8, 8-port GbE Smart Managed Switch



• 10/100/1000 Mbps GbE ports

• Easy browser-based switch management

• Quick and easy set up wizard

• Advanced network error prevention features (loop protection, dual images, storm control, DoS and SSL)

• Fanless design

• Green Ethernet IEEE 802.3az support and intelligent ZyXEL green features



GS1900-8

Switch Class

Switch class Web-managed

Port Density

10/100 Mbps -

10/100 Mbps PoE -

100/1000 Mbps 8

100/1000 Mbps PoE -

Gigabit SFP -

Dual-personality Gigabit (SFP/RJ-45) -

12-Gigabit CX4 -

10-Gigabit module -

10-Gigabit SFP+ -

Performance

Switching capacity (Gbps) 16

Forwarding rate (Mpps) 11.9

Packet buffer (byte) 525 K

MAC address table 8 K

IP address table -

Routing entries -

Routing domains -

Management

IPv6 management Yes

CLI,web GUI -

iSTACKING (single IP management) -

Out-of-bound management port -

Routing/Redundancy

OSPF -

RIP v1,v2 -

Static IP routing -

VRRP -

Spanning tree (STP/MSTP/RSTP) Yes/Yes/Yes

Redundant power support -

Quality of Service

Priority queues 8

Data prioritization (SPQ/WRR/WFQ ) Yes/-/Yes

Guest VLAN Yes

IGMP snooping (v1/v2/v3) Yes

MVR Yes

Jumbo frame forwarding up to 10240

DVMRP -

802.1p CoS Yes

Security

MAC freeze/Intrusion lock -

802.1X authentication Yes

TACACS+/RADIUS Yes

ACL security filter L2/L3/L4 Yes

sFlow -

CPU protection -

Power

Input 100 - 240 V AC, 50/60 Hz

Max. power consumption (watt) 6.5

Total PoE power budget (watt) -

Removable power module -

Green Features

Fanless Yes

IEEE Energy-Efficient-Ethernet Yes

Environmental Specification

Operating temperature 0°C to 50°C/32°F to 122°F

Storage temperature -40°C to 70°C/-40°F to 158°F

Operating humidity 10% to 95% (Non-condensing)

Storage humidity -

MTBF (hr) 862,561

Heat dissipation (BTU/hr) 22.17

Physical Specifications

Dimensions (WxDxH)(mm/in.) 250 x 104 x 27/9.84 x 4.10 x 1.06

Weight(kg/lb.) 0.65/1.43

Removable fan module -
