Podrobnosti Fanless (bez ventilátoru)Network Ports
Forwarding Mode
- Store-and-Forward
- 128K On-Chip Packet Buffering
Performance
- Bandwidth: 10 Gbps (non-blocking)
- Forward Rate (10 Mbps port): 14,800 packets/sec
- Forward Rate (100 Mbps port): 148,000 packets/sec
- Forward Rate (1000 Mbps port): 1,480,000 packets/sec
- Network Latency (100 to 100 Mbps): 20 µs (max)
- Network Latency (1000 to 1000 Mbps): 10 µs (max)
- Queue Buffer Memory: 12 kbytes per port
- MAC address database: 4,000
- Mean Time Between Failure (MTBF): 91,500 hours (~10 years)
Status LEDs
- System power per port: Link, speed and activity
AC Power
Physical Specifications
- Dimensions (w x d x h): 93 x 105 x 27 mm (3.7 x 4.1 x 1.1 in)
- Weight: 300 g (0.66 lb)
Environmental Specifications
- Operating Temperature: 0o to 50o C (32o to 122o F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Specifications -20o to 70° C (-4o to 158o F) 10% to 95% Relative Humidity
Standards Compliance
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3z 1000BASE-T Gigabit Ethernet
- IEEE 802.3x Full-duplex Flow Control
- IEEE 801.p priority tags
- DSCP priority tags
- Jumbo Frame support (9,000 byte)
- Windows®, MAC OS, NetWare®, Linux®
Safety Agency Approvals
- UL (UL 60950), CUL, C-Tick, CE Mark, licensed (EN 60950)
Emissions
- FCC Class A and VCCI Class A, CE Class A
Package Contents

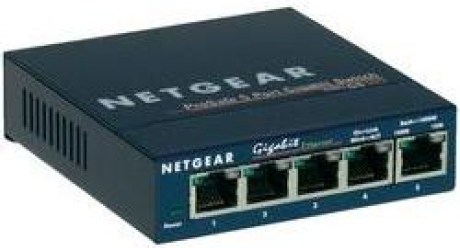

- ProSafe 5-Port Gigabit Ethernet Desktop Switch 10/100/1000 (GS105v2)
- Wall-mount kit
- Power adapter
- Installation guide
- Warranty & support information card
.
