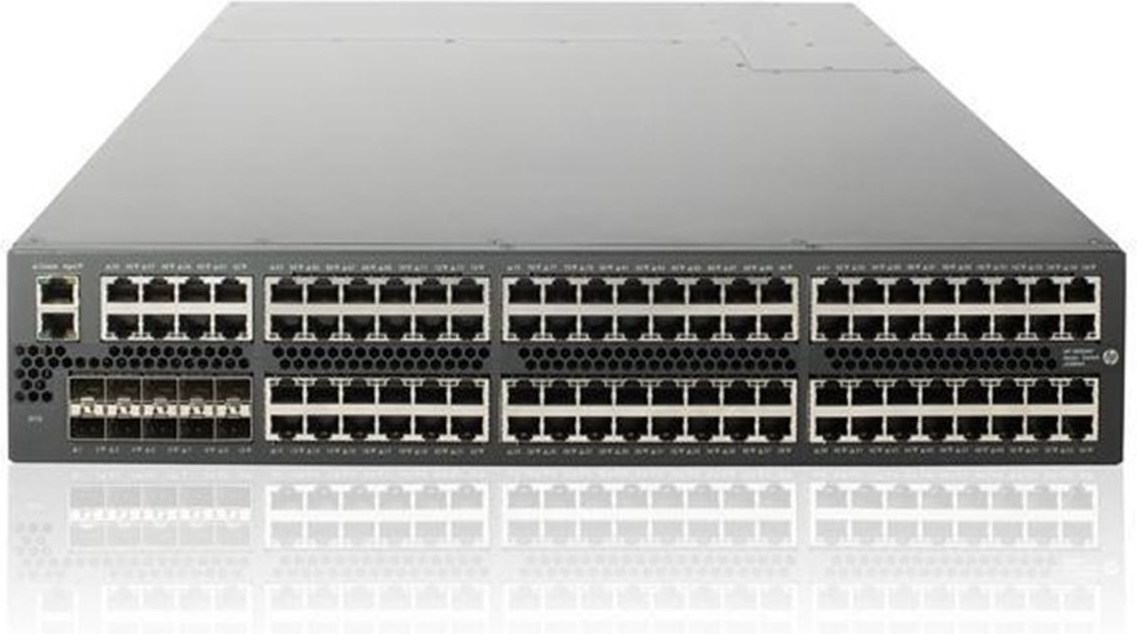

HP A5830AF-96G JC694A

JC694APřehled- Advanced L3 switch s managementem- 96x 10/100/1000 metalických portů + 10x 10GbE SFP+ porty + 1x RJ-45 out-of-band management port + 1x rozšiřující modulový slot- Full Layer 2/3 dual-stack IPv4/IPv6- Velmi malé zpoždění (latency)- Ultradeep (1 GB and 3 GB) packet buffer- Layer 3 s multicastem, IRF stohování- Redundantní napájecí zdroje, ventilátory- Montáž do 19“CharakteristikaQuality of Service (QoS)Traffic policing; Powerful QoS featureManagementsFlow (RFC 3176); Remote configuration and management; Manager and operator privilege levels; Management VLAN; Multiple configuration files; Secure Web GUI; SNMPv1, v2c, and v3; Remote monitoring (RMON); Network Time Protocol (NTP); Out-of-band interface; Remote intelligent mirroringConnectivityJumbo frames; Auto-MDIX; IPv6 native support; IPv6 host; Dual stack (IPv4 #and; IPv6); Multicast Listener Discovery (MLD) snooping; IPv6 ACL/QoS; IPv6 routing;PerformanceExtraordinarily high port density; Ultradeep packet buffering; Hardware-based wire-speed access control lists (ACLs); Local Address Resolution Protocol (ARP)Resiliency and high availabilityDevice Link Detection Protocol (DLDP); Virtual Router Redundancy Protocol (VRRP); Intelligent Resilient Framework (IRF); Rapid Ring Protection Protocol (RRPP); Smart link; Data center optimized designManageabilityTroubleshootingLayer 2 switchingSpanning Tree/MSTP and RSTP; Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping; 32K MAC addresses; IEEE 802.1ad QinQ and Selective QinQ; 10GbE port aggregation; Port isolation; Per-VLAN Spanning Tree Plus (PVST+); GVRP VLAN Registration ProtocolLayer 3 servicesLoopback interface address; User Datagram Protocol (UDP) helper function; Route maps; Dynamic Host Configuration Protocol (DHCP)Layer 3 routingIPv6 tunneling; Bidirectional Forwarding Detection (BFD); Policy-based routing; IGMPv1, v2, and v3; PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6); Layer 3 IPv4 routing; Equal-Cost Multipath (ECMP); Layer 3 IPv6 routingSecurityAccess control lists (ACLs); Secure Shell; Port security; Secure FTP; Secure management access; Identity-driven security and access control; Per-user ACLs; Automatic VLAN assignment; STP BPDU port protection; DHCP protection; Dynamic ARP protection; STP Root Guard; Guest VLAN; MAC-based authentication; IP Source Guard; Endpoint Admission Defense (EAD); RADIUS/HWTACACSConvergenceIP multicast snooping (data-driven IGMP); IEEE 802.1AB Link Layer Discovery Protocol (LLDP); Internet Group Management Protocol (IGMP); Protocol Independent Multicast (PIM); Multicast Source Discovery Protocol (MSDP); Multicast Border Gateway Protocol (MBGP); Multicast VLAN; LLDP-MED; LLDP-CDP compatibilityMonitor and diagnosticsPort mirroring; OAM ( IEEE 802.3ah); CFD (IEEE 802.1ag)Additional informationGreen initiative support; Green IT and powerWarranty and support1-year warranty; Electronic and telephone support; Software releasesTechnická specifikacePorty48 RJ-45 autosensing 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 dual-personality ports, auto-sensing 10/100/1000Base-T or SFP; 2 fixed 1000/10000 SFP+ ports; 1 RJ-45 serial console port; 1 RJ-45 out-of-band management port; 1 extended module slotPaměť a procesor64 MB flash, packet buffer size: 1 GB, 1 GB SDRAMDatový tok119 million pps (64-byte packets)Velikost směrovací tabulky12000 entriesFunkce správyIMC - Intelligent Management Center; command-line interface; Web browser; out-of-band management; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIBPřepínací kapacita160 GbpsOchrana proti útoku Denial of serviceRFC 2267 Network Ingress Filtering; Automatic filtering of well-known denial-of-service packets; CPU DoS Protection; Rate Limiting by ACLsObecné protokolyIEEE 802.1ad Q-in-Q; IEEE 802.1ag Service Layer OAM; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.1X PAE; IEEE 802.3ab 1000BASE-T; IEEE 802.3ac (VLAN Tagging Extension); IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3ae 10-Gigabit Ethernet; IEEE 802.3at; IEEE 802.3u 100BASE-X; IEEE 802.3z 1000BASE-X; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 894 IP over Ethernet; RFC 903 RARP; RFC 906 TFTP Bootstrap; RFC 925 Multi-LAN Address Resolution; RFC 950 Internet Standard Subnetting Procedure ; RFC 951 BOOTP; RFC 959 File Transfer Protocol (FTP); RFC 1027 Proxy ARP; RFC 1035 Domain Implementation and Specification; RFC 1042 IP Datagrams; RFC 1058 RIPv1; RFC 1142 OSI IS-IS Intra-domain Routing Protocol; RFC 1213 Management Information Base for Network Management of TCP/IP-based internets; RFC 1256 ICMP Router Discovery Protocol (IRDP); RFC 1293 Inverse Address Resolution Protocol; RFC 1305 NTPv3; RFC 1350 TFTP Protocol (revision 2); RFC 1393 Traceroute Using an IP Option; RFC 1519 CIDR; RFC 1531 Dynamic Host Configuration Protocol; RFC 1533 DHCP Options and BOOTP Vendor Extensions; RFC 1591 DNS (client only) ; RFC 1624 Incremental Internet Checksum; RFC 1701 Generic Routing Encapsulation; RFC 1721 RIP-2 Analysis; RFC 1723 RIP v2; RFC 1812 IPv4 Routing; RFC 2091 Trigger RIP; RFC 2131 DHCP; RFC 2138 Remote Authentication Dial In User Service (RADIUS); RFC 2453 RIPv2; RFC 2644 Directed Broadcast Control; RFC 2763 Dynamic Name-to-System ID mapping; RFC 2784 Generic Routing Encapsulation (GRE); RFC 2865 Remote Authentication Dial In User Service (RADIUS); RFC 2966 Domain-wide Prefix Distribution with Two-Level IS-IS; RFC 2973 IS-IS Mesh Groups; RFC 3277 IS-IS Transient Blackhole Avoidance; RFC 3567 Intermediate System to Intermediate System (IS-IS) Cryptographic Authentication; RFC 3719 Recommendations for Interoperable Networks using Intermediate System to Intermediate System (IS-IS); RFC 3784 ISIS TE support; RFC 3786 Extending the Number of IS-IS LSP Fragments Beyond the 256 Limit; RFC 3787 Recommendations for Interoperable IP Networks using Intermediate System to Intermediate System (IS-IS); RFC 3847 Restart signaling for IS-IS; RFC 4251 The Secure Shell (SSH) Protocol Architecture; RFC 5130 A Policy Control Mechanism in IS-IS Using Administrative TagsSpráva sítěIEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1155 Structure of Management Information; RFC 1157 SNMPv1; RFC 1448 Protocol Operations for version 2 of the Simple Network Management Protocol (SNMPv2) ; RFC 2211 Controlled-Load Network; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; RFC 3411 SNMP Management Frameworks; RFC 3412 SNMPv3 Message Processing; RFC 3414 SNMPv3 User-based Security Model (USM); RFC 3415 SNMPv3 View-based Access Control Model VACM); ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)Vstupní napětí100-240 VAC.
