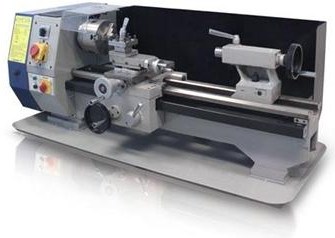

Erba Sústruh univerzálny ER-80002

Distance between centers: 550mm Distance over bed: 125mm Swing over bed: 250mm speed range: 125-2000rpm, 6 steps spindle bore: 19,8mm Top slide travel: 74mm Movement of tailstock quill: 70mm Taper of spindle bore: MK2 Metric threads: (12) 0,4 â€" 3 mm Whitworth threads: (8) 10 - 44Gg/1" Feedrates longitudinal metric: (2) 0,1 â€" 0,3 mm U Engine power: 600Watt/ 400V~50Hz Main dimension (LxWxH): 1180 x 600 x 380mm Basic Equipment: machine bed, headstock, tailstock, compound -and cross slide with four steel holder, lathe chuck (with changing jaws, chuck key and fixing flange 125mm) that is mounted directly on the main spindle with a cylinder mating and 3 screws, 10pcs. gears with the following number of teeth: 30/40/42/50/52/60/66/70/75/80 1pc. gear with mounting mandrel, dead centre MK2, dead centre MK3, drive motor, electric equipment, handling tools, user manual short description: An ideal machine for multi-purpose use, working on different material. This machine can also be used for drilling and milling in combination with an appropriate unit which can be bought additionally and mounted on the lathe machine. Special made for precision mechanic, mechanical workshops-schools, Optical-Electric- and Car-workshops. Industrial machine according to EAG-VO, not released Delivery without drilling and milling unit and underframe! large choice of lathe accessories at Erba! TAoV/GS - CE approved.
