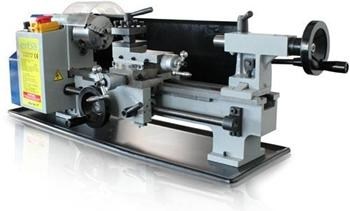

Erba Sústruh Compakt 300 ER-81001

including 3 jaw-chuck 80mm, TÜV/GS - CE approved distance over bed: 90mm swing over bed: 180mm swing over saddle: 110mm cross slide travel: 65mm distance between centers: 300mm Hole through spindel: 20mm workable overall diameter: 74mm cross-section of turning tool shaft: max. 8x8mm tension capacity 3-jaw chuck (approx. figures): jaws outerstepped: 34mm jaws innerstepped: 75mm chuck- jaw drill: 16mm thread metric version: (12) 0,4 - 2,0mm true-runnning accuracy (with jaw chuck): spindle speed, variable: low range: 100-1100rpm high range: 200-2500rpm feed rate of the lead screw: 0,4-2,0/U-min incline lead screw: 1,5mm incline cross spindle: 1,0mm incline longitudinal spindle: 1,0mm spindle taper: MK3 tailstock taper: MK2 overall dimension (LxWxH): 720 x 300 x 290mm basic equipment: machine bed, headstock, tailstock, compound -and cross slide with four steel holder, lathe chuck (with changing jaws, chuck key and fixing flange 75mm) that is mounted directly on the main spindle with a cylinder mating and 3 screws, gear set, dead centre MK2, drive motor, electric equipment, 2pcs double open end spanners, hex key, innerstepped chuck jaws, jaw-chuck key, user manual. short description: An ideal machine for multi-purpose use, working on different material. The distances over bed and between centers are appropriate to the requirements of precision mechanics,workshops-schools, Optical-Electric- and Car-workshops.
