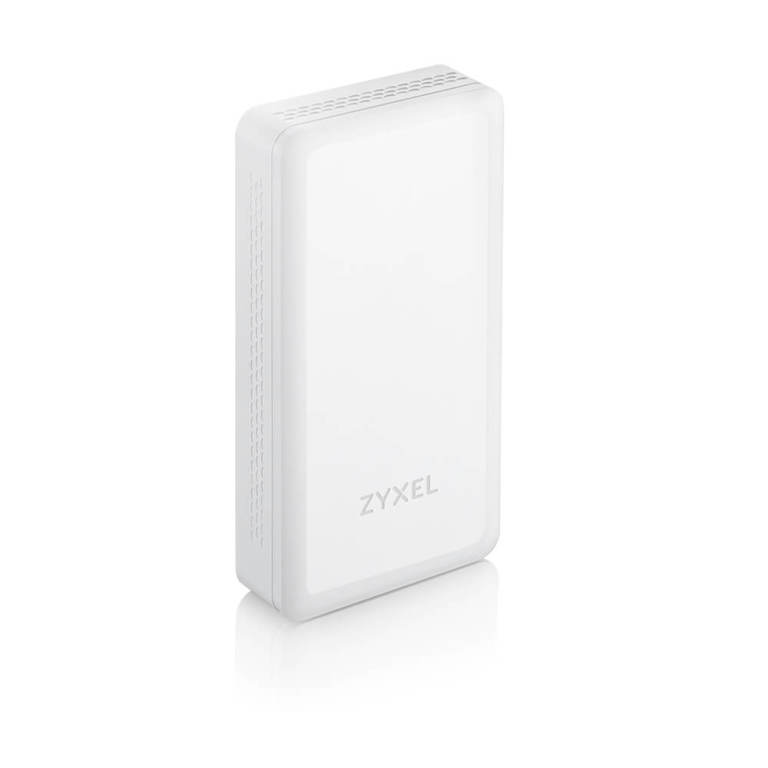

Zyxel WAC5302D-Sv2

Wireless Standard IEEE802.11 ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4 GHz: 300Mbps 5 GHz: 866Mbps Frequency band 2.4 GHz USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40- and 80-MHz Conducted typical transmit output power US (2.4GHz/5GHz) 18/19dBm EU (2.4GHz/5GHz) 17/19dBm RF Design Antenna type 2x2 MIMO Smart Antenna Antenna gain 2.4GHz 5 dBi 5GHz 5 dBi Minimum receive sensitivity Up to -98 dBm WLAN feature Band Steering Yes WDS / Mesh Yes Fast roaming Pre-authentication, PMK caching and 802.11r/k/v DCS Yes Load balancing Yes Security Encryption WEP WPA WPA2-PSK WPA3 Authentication WPA WPA2-Enterprise EAP IEEE 802.1X RADIUS authentication Access management L2-isolation MAC filtering Rogue AP detection Networking IPv6 Yes VLANs Yes WMM Yes U-APSD Yes DiffServ marking Yes Management Operating mode Nebula Cloud managed Controller-managed Standalone ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration Zyxel Wireless Optimizer WiFi AP planning WiFi coverage detection Wireless health management Web UI/ CLI Yes SNMP Yes Physical Specifications Item Dimensions (WxDxH)(mm/in.) 90 x 170 x 29/3.54 x 6.69 x 1.14 Weight (g/lb.) 0.32/0.71 Packing Dimensions (WxDxH)(mm/in.) 190 x 110 x 55/7.48 x 4.33 x 2.16 Weight (g/lb.) 0.54/1.19 Included accessories Mount plate Mounting screws MTBF(hr) 809,263 Physical Interfaces Ethernet port 1x 10/100/1000M uplink 3x 10/100/1000M downlink(including on PoE PSE) Power 802.3at (Full mode include 7W PoE PSE; power draw 20W) 802.3af (Full mode but PoE PSE disabled; power draw 12W) Environmental Specifications Operating Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) Certifications Radio FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EN 60601-1-2 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 BSMI CNS13438 Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1.
