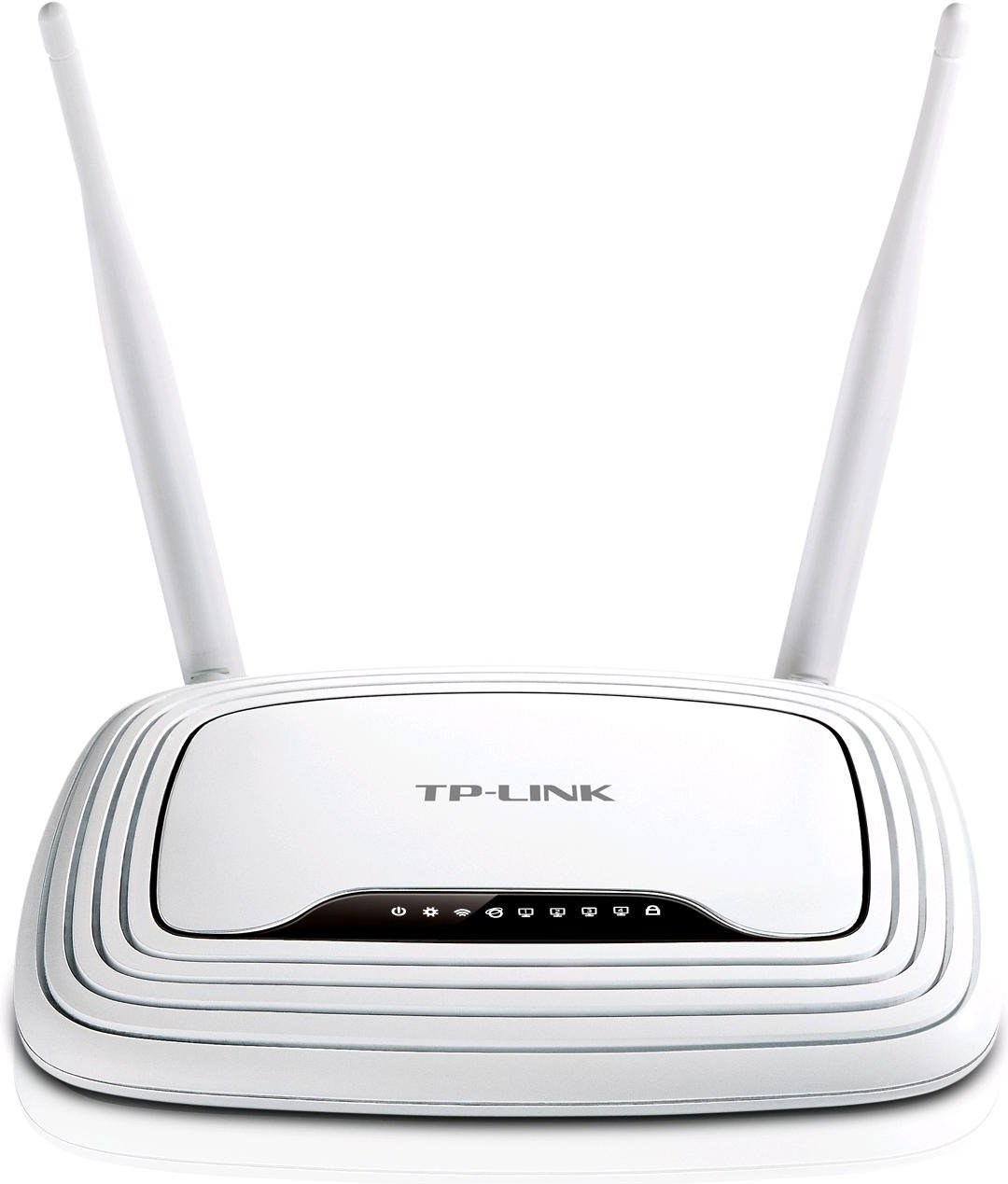

TP-Link TL-WR843ND

•Funkcia bezdrôtového ISP poskytuje bezdrôtový prístup k internetu v oblastiach bez káblovej infraštruktúry ISP
•Rýchlosť bezdrôtového pripojenia 300 Mbit / s je ideálna pre aplikácie citlivé na oneskorenie, napr. streamovanie HD videa
•Jednoduché nastavenie a pripojenie zabezpečené pomocou šifrovania WPA2 stlačením tlačidla WPS
•Port WAN podporuje funkciu pasívneho napájania po Ethernete až do vzdialenosti 30 metrov (100 stôp)
•Funkcia WDS umožňuje bezproblémové premostenie v prípade rozširovania bezdrôtovej siete

HARDWARE FEATURES

Interface
4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port

Button
WPS/Reset Button
Operation Mode Switch
Power On/Off Button

Antenna
2*5dBi Detachable Omni Directional Antenna (RP-SMA)

External Power Supply
9VDC / 0.85A

Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )
7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm)

WIRELESS FEATURES

Frequency
2.4-2.4835GHz

Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power
<20dBm(EIRP)

Wireless Modes
Client Router / Router

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security
64/128/152-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

Quality of Service
WMM, Bandwidth Control

WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond

Management
Access Control
Local Management
Remote Management

DHCP
Server, Client, DHCP Client List,
Address Reservation

Port Forwarding
Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS
DynDns, Comexe, NO-IP

VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)

Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols
Support IPv4 and IPv6

Guest Network
2.4GHz Guest Network x1

OTHERS

Certification
CE, FCC, RoHS

Package Contents
300Mbps Wireless N AP/Client Router TL-WR843ND
Power Adapter
RJ45 Ethernet Cable
Passive PoE Power Injector
Resource CD
Quick Installation Guide

System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
