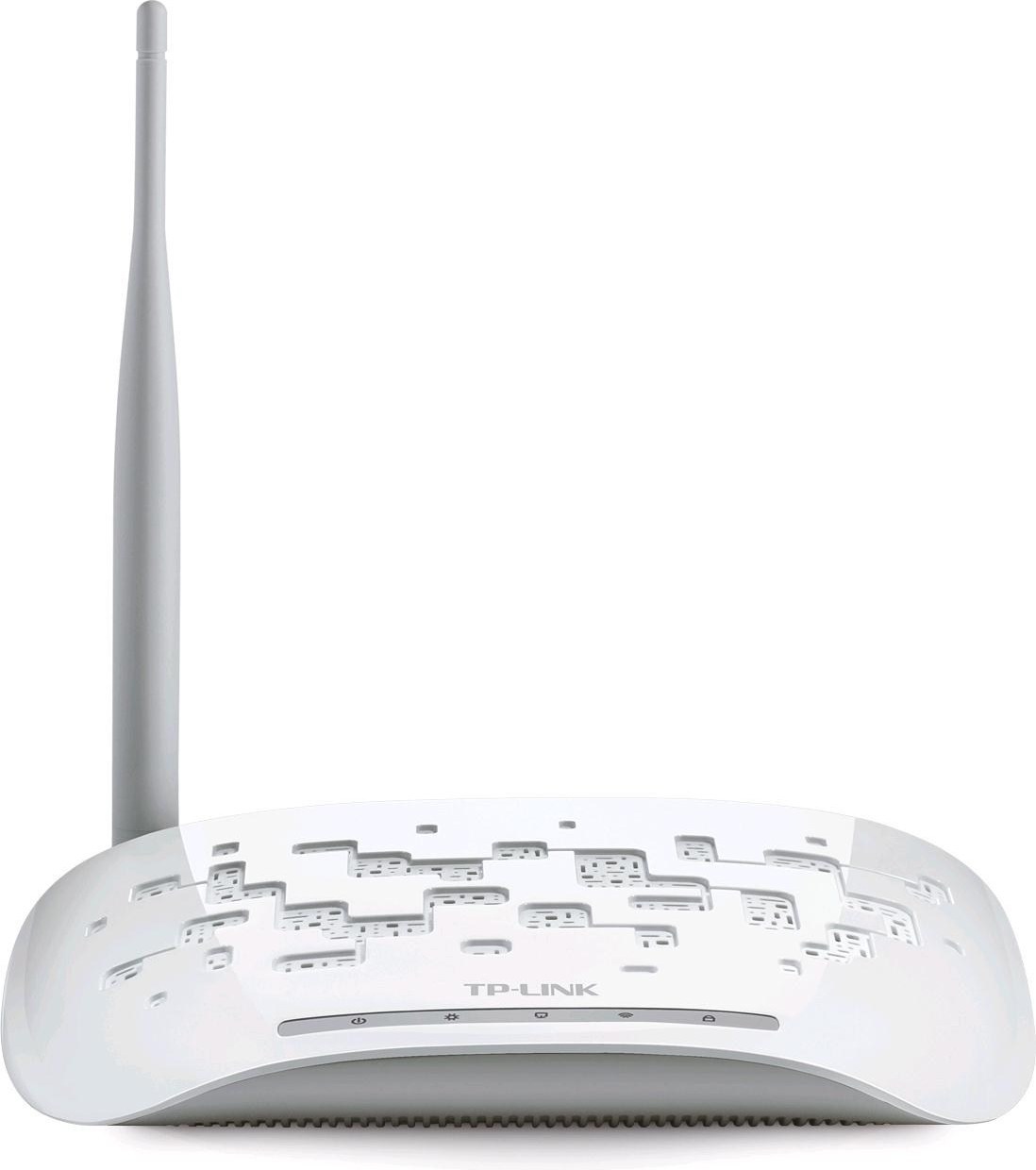

TP-Link TL-WA701ND

TP-Link TL-WA701ND
150Mbps Wireless Lite N Access Point, Atheros, 1T1R, 2.4GHz, compatible with 802.11n/g/b, Passive PoE Supported, QSS Push Button, AP/Client/Bridge/Repeater,Multi-SSID, WMM, Ping Watchdog, with 1 4dbi detachable Antenna
150Mbps wireless N access point 1T1R. Podpora módov Access Point, Client, Universal/ WDS Repeater, Wireless Bridge. Podpora Multi-SSID s VLAN. Jednoduchá inštalácia WPA cryptovanie. Pasívny Power over Ethernet do 30 metrov.
Atheros chipova sada.
Jedna 4dBi odnímateľna anténa.

* Wireless speed up to 150Mbps makes it ideal for bandwidth consuming applications
* Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point Bridge, Point to Multi-Point Bridge)
* Easily setup a WPA encrypted secure connection at a push of the QSS button
* Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming
* Supports up to 30 meters of Power over Ethernet capability for flexible performance
* Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users
* WPA/WPA2 encryptions provide your network with active defense against security threats
* Backward compatible with 802.11b/g products
* External detachable antennas allow for better alignment and stronger antenna upgrades
* Wall mounted available, also can be placed horizontally on a table or desk




HARDWARE FEATURES


Interface
1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)

Button
Quick Setup Security (WPS Compatible)
Reset Button

External Power Supply
9VDC / 0.85A

Wireless Standards
IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )
5.9 x 3.9 x 1.1 (in.), 150x100x28(mm)

Antenna Type
4dBi Detachable Omni Directional Antenna (RP-SMA)







WIRELESS FEATURES


Frequency
2.4-2.4835GHz

Signal Rate
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

EIRP


Reception Sensitivity
130M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Wireless Modes
AP Mode, Multi-SSID Mode
AP Client Mode, Repeater Mode (WDS / Universal )
AP+ Bridge mode (point-to-point / point to multi-point)

Wireless Functions
WDS Bridge, WMM

Wireless Security
SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption

Advanced Functions
Up to 30 meters PoE is supported







OTHERS


Certification
CE, FCC, RoHS

Package Contents
TL-WA701ND
1 detachable Omni directional antenna
PoE Injector
Power supply unit
Resource CD
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
