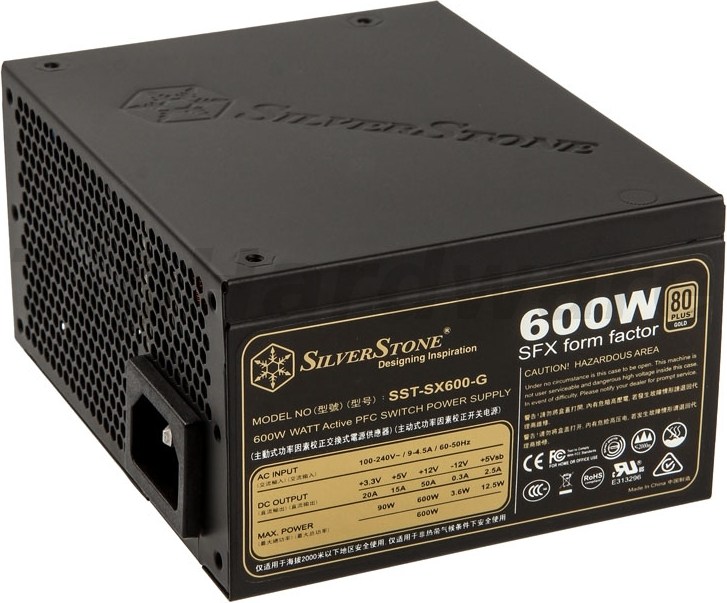

Silverstone SST-SX600-G

SPECIAL FEATURES Intelligent semi-fanless operation Support standard SFX form factor and ATX via included bracket High efficiency with 80 PLUS Gold certification 100% modular cables All cables made with flexible flat arrays 600W continuous power output at 40? operating temperature rated for 24/7 operation Class-leading single +12V rail with 50A Strict ±3% voltage regulation and low ripple & noise Support dual PCI-E 8/6pin connectors Model No. SST-SX600-G Max. DC Output 600W Load Range +3.3V +5V +12V +5VSB -12V Max.(Amps) 20A 15A 50A 2.5A 0.3A Peak (Amps) / / / 3A / Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±3% ±3% ±3% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±2% Ripple(mVp-p) 50mA 50mA 120mV 50mV 120mV combined +3.3, +5V 90W combined +12V 600W Input Voltage 90V ~ 264V Input Frequency Range 47Hz ~ 63Hz PFC Active PFC(PF>0.95 at full load) Efficiency 87%~90%(20% to 100% loading) MTBF 100,000 hours Operating temperature 0°C ~ 40°C Protection Over current protection Over power protection Over voltage protection Over Temperature Protection Under voltage protection Short circuit protection No load operation Connectors 1 x 24 / 20-Pin motherboard connector(300mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(400mm) 2 x 8 / 6-Pin PCIE connector(400mm / 150mm) 4 x SATA connector(300mm / 200mm / 100mm / 100mm) 2 x 4-Pin Peripheral connector (300mm / 200mm) 1 x 4-Pin Floppy connector(300mm / 200mm / 200mm) Color Black(Lead-Free Paint) Cooling System Single 80mm silent fan Noise Level 0 ~ 40 dBA Dimension 125 mm (W) × 63.5 mm (H) × 100 mm (D) Weight 1.45 Kg Form factor SFX Certification 80 PLUS Gold Other Includes SFX to ATX bracket for use in ATX case GPU Support list Haswell CPU support
