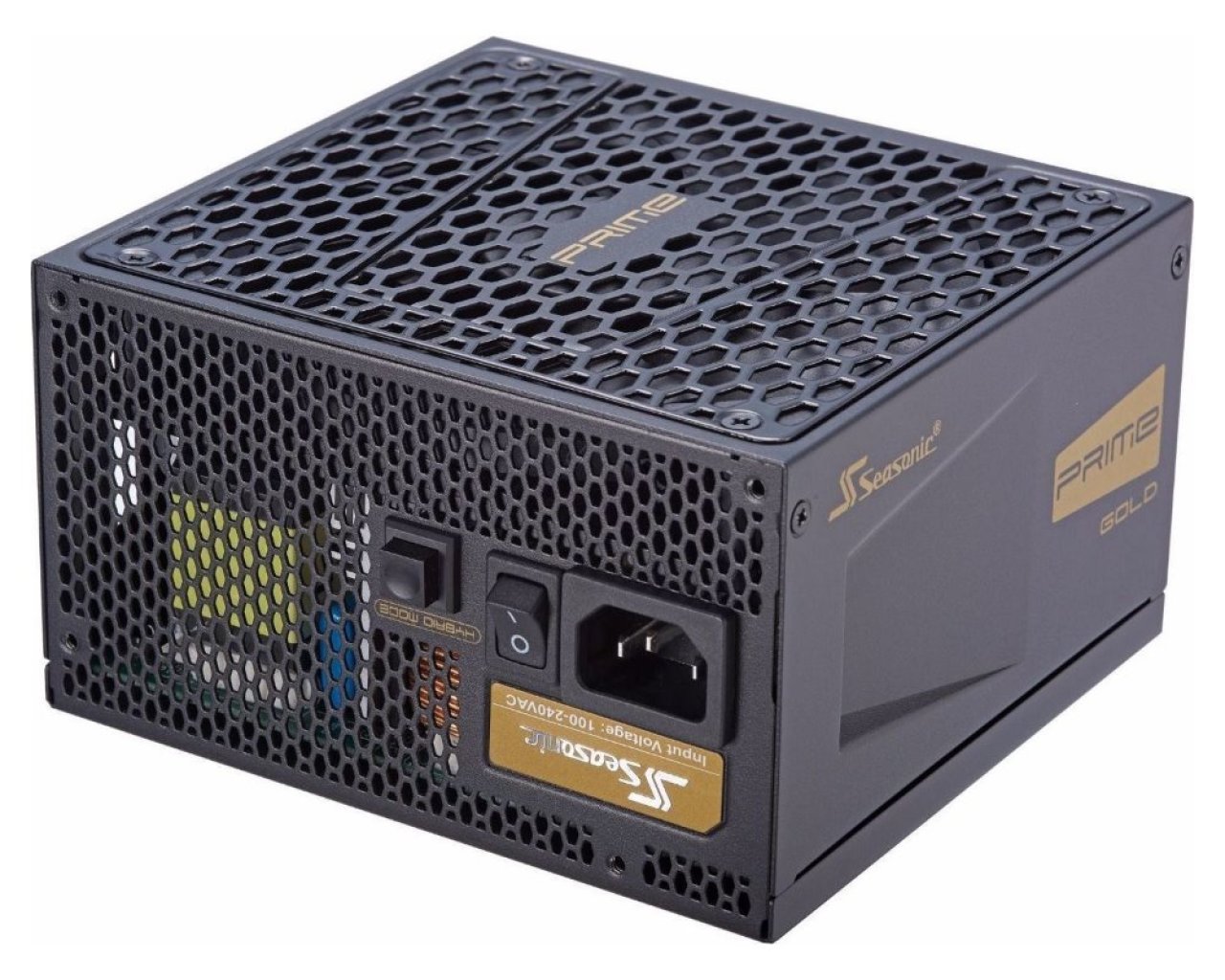

Seasonic SSR-650GD2

80 PLUS® Gold certified Micro Tolerance Load Regulation (0.5 %) Cable-free Connection Design Premium Hybrid Fan Control - Fanless until 40 % load Multi-GPU setup Gold plated connectors 12 years warranty PRIME-GX-650 Technical Specifications 80PLUS®Â Â Â  Gold Cybenetics Efficiency Level    TBA Cybenetics Noise Level    TBA Form Factor    Intel ATX 12 V Dimensions    140 mm (L) x 150 mm (W) x 86 mm (H) Fan Information    Fan Size    135 mm Fan Control    Premium Hybrid Fan Control Fan Bearing    Fluid Dynamic Bearing Life Expectancy    50,000 hours at 40 °C, 15 % - 65 % RH Cable Information    Modularity    Fully Modular Cable type    Flat black cables Electrical Features    Operating Temperature    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) MTBF @ 25 °C, excl. fan    150,000 hours AC Input    Full Range Protection    OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental    Safety and EMC    cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance    Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty    12 Years Power Output AC Input    Voltage: 100 V - 240 V Current: 9 - 4.5 A Frequency: 50 Hz - 60 Hz DC Output    Rail    +3.3 V    +5 V    +12 V    -12 V    +5 VSB Maximum Power    20 A    20 A    54 A    0.3 A    3 A 100 W    648 W    3.6 W    15 W Total continuous power    650 W CABLES Cable type    Connector(s) per cable    Total Length (mm)    Number(s) of cable(s) included MB-610    MB (24/20 pins)    1    610    1 CPU-650    CPU (8/4 pins)    1    650    2 PCIe-750-2x    PCIe (8/6 pins)    2    750    0 PCIe-750-1x    PCIe (8/6 pins)    1    750    4 SATA-810-4x-90    SATA    4    810    1 SATA-800-4x-180    SATA    4    860    1 SATA-760-4x-90    SATA    4    760     0 SATA-700-2x-90    SATA    2    700    0 SATA-570-2x-180    SATA    2    570    0 SATA-470-2x-180    SATA    2    470    0 SATA-450-2x-180    SATA    2    450    1 Molex-690-3x    Molex    3    690    1 Molex-470-2x    Molex    2    470    0 Molex-to-SATA-3-3-300    Molex to SATA 3.3 Adapter    2    300    1 Molex-to-FDD-101    Molex to FDD Adapter    1    101     0.
