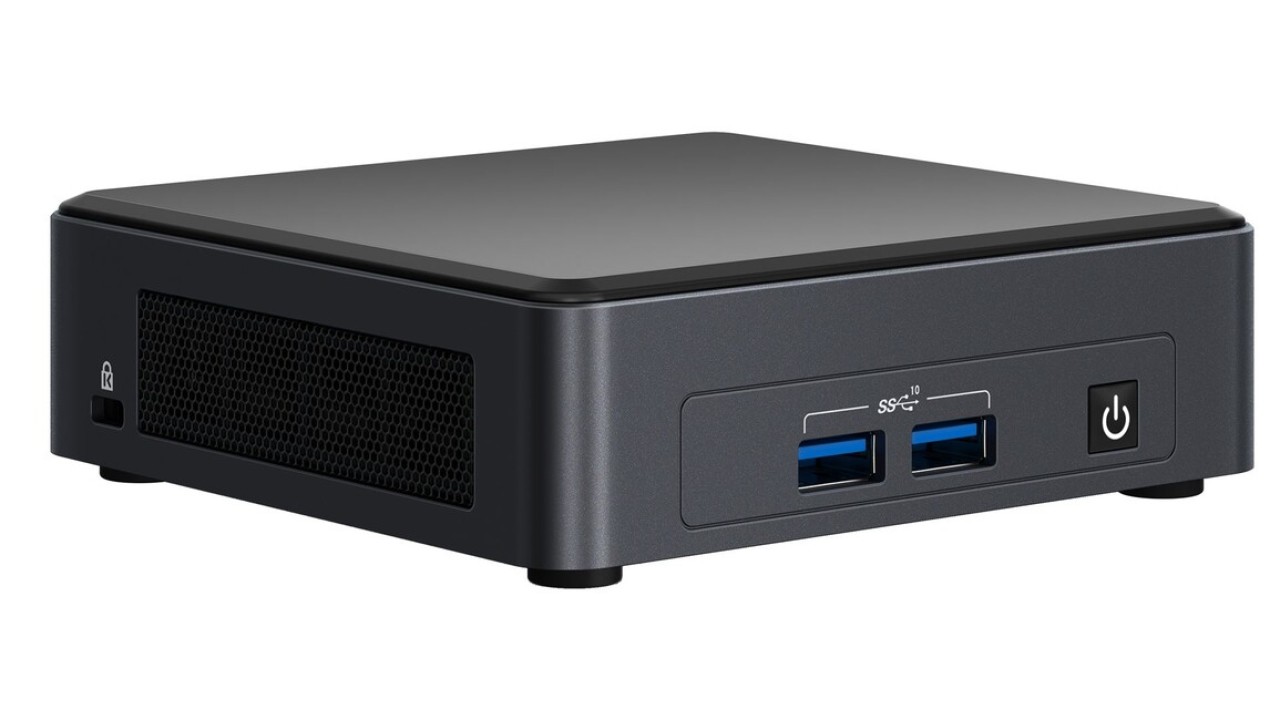

Intel NUC11TNKi7

Intel® NUC 11 Pro Kit NUC11TNKi7 TECHNICAL SPECIFICATIONS Essentials Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors Code Name Products formerly Tiger Canyon Status Launched Launch Date Q1''21 Expected Discontinuance 1H''24 Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 20.04 LTS* Board Number NUC11TNBi7 Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor M.2 SSD TDP 28W DC Input Voltage Supported 12-24 VDC Processor Included Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz) # of Cores 4 # of Threads 8 Max Turbo Frequency 4.70 GHz Memory & Storage Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-3200 1.2V SO-DIMMs Max # of Memory Channels 2 Max # of DIMMs 2 ECC Memory Supported No Processor Graphics Processor Graphics Intel® Iris® Xe Graphics Integrated Graphics Yes Graphics Output Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C # of Displays Supported 4 Expansion Options PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise) PCI Express Configurations PCIe x4 Gen 4: M.2 22x80 (key M)PCIe x1 Gen 3: M.2 22x42 (key B)PCIe x1: M.2 22x30 (key E) M.2 Card Slot (wireless) 22x30 (E) M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B) I/O Specifications # of USB Ports 4 USB Configuration Front: 2x USB 3.2Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers) Serial Port via Internal Header Yes Integrated LAN Intel® Ethernet Controller i225-LM Integrated Wireless Intel® Wi-Fi 6 AX201 Integrated Bluetooth Yes Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector # of Thunderbolt™ Ports 1x Thunderbolt™ 4, 1x Thunderbolt™ 3 Package Specifications Chassis Dimensions (L x W x H) 117 x 112 x 37 mm Advanced Technologies Intel® Optane™ Memory Supported ‡ No Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® ME Firmware Version 15 Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Platform Trust Technology (Intel® PTT) Yes Security & Reliability Intel® AES New Instructions Yes.
