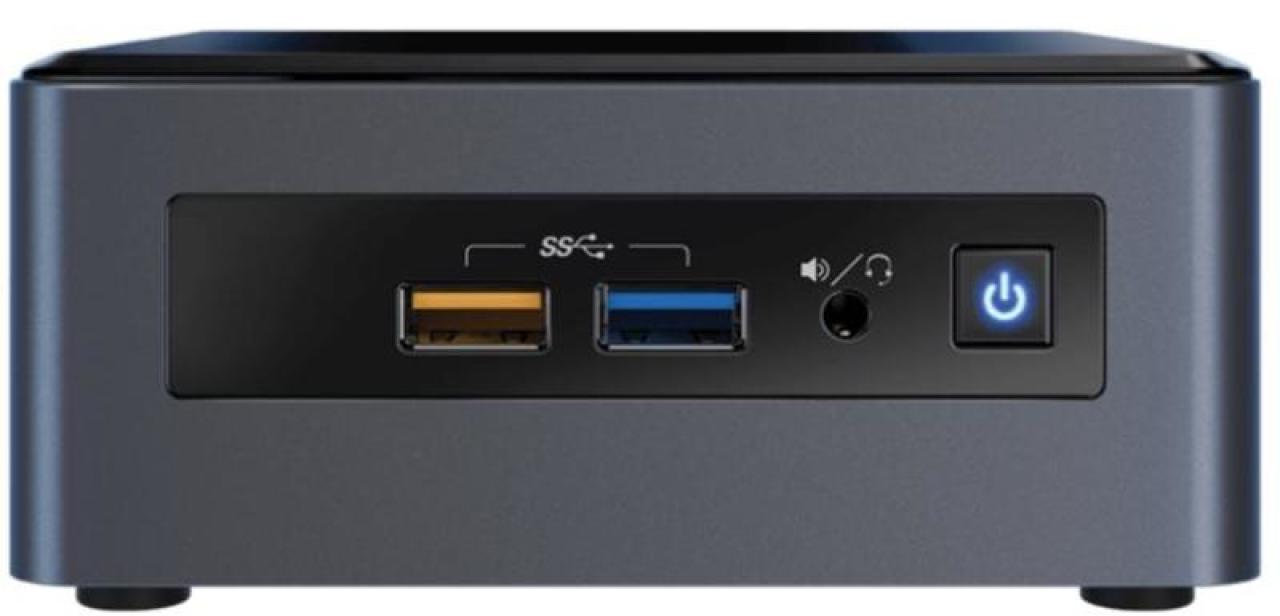

Intel 8i5BEH

INTEL NUC Bean Canyon/Kit NUC 8i5BEH/i5 Core 8259U,3.8GHZ/DDR4/USB3.0/LAN/WifFi/HD620/M.2 +2,5" Specification: Product: Intel® NUC Kit with 8th Generation Intel® Core™ Processors Code Name: Products formerly BEAN CANYON Board Form Factor: UCFF (4" x 4") Internal Drive Form Factor: M.2 and 2.5" Drive Internal Drives Supported 2 Lithography 14 nm TDP : 28 W DC Input Voltage Supported 12-19 VDC Processor: Intel® Core™ i5-8259U Processor (6M Cache, up to 3.80 GHz) Warranty Period 3 yrs Other features: Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C Includes microSDXC card slot, dual microphones Memory & Storage: Max Memory Size (dependent on memory type) 32 GB Memory Types DDR4-2400 1.2V SO-DIMM Max # of Memory Channels 2 Max Memory Bandwidth 38.4 GB/s Max # of DIMMs 2, ECC Memory Supported ‡ No Integrated Processor Graphics: Graphics Output HDMI 2.0a; USB-C (DP1.2) Displays Supported ‡ 3 Expansion Options: PCI Express Revision Gen3 PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes Removable Memory Card Slot microSDXC with UHS-I support M.2 Card Slot (storage) 22x42/80 I/O Specifications: # of USB Ports 6 USB Configuration 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers USB Revision 2.0, 3.1 Gen2 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total # of SATA Ports 2 Max # of SATA 6.0 Gb/s Ports 2 RAID Configuration 2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R mic (F) Integrated LAN 10/100/1000 Integrated Wireless‡ Intel® Wireless-AC MAC Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes Additional Headers CEC, 2x USB2.0, FRONT_PANEL Thunderbolt™ 3 Ports 1 Package Specifications: Low Halogen Options Available See MDDS Advanced Technologies: Intel® Optane™ Memory Supported ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® vPro™ Platform Eligibility ‡ No TPM No Intel® HD Audio Technology Yes Intel® Rapid Storage Technology Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Platform Trust Technology (Intel® PTT) Yes Security & Reliability: Intel® AES New Instructions Yes Stránky o produktu: https://ark.intel.com/products/126148/Intel-NUC-Kit-NUC8i5BEH?q=BOXNUC8i5BEH2.
