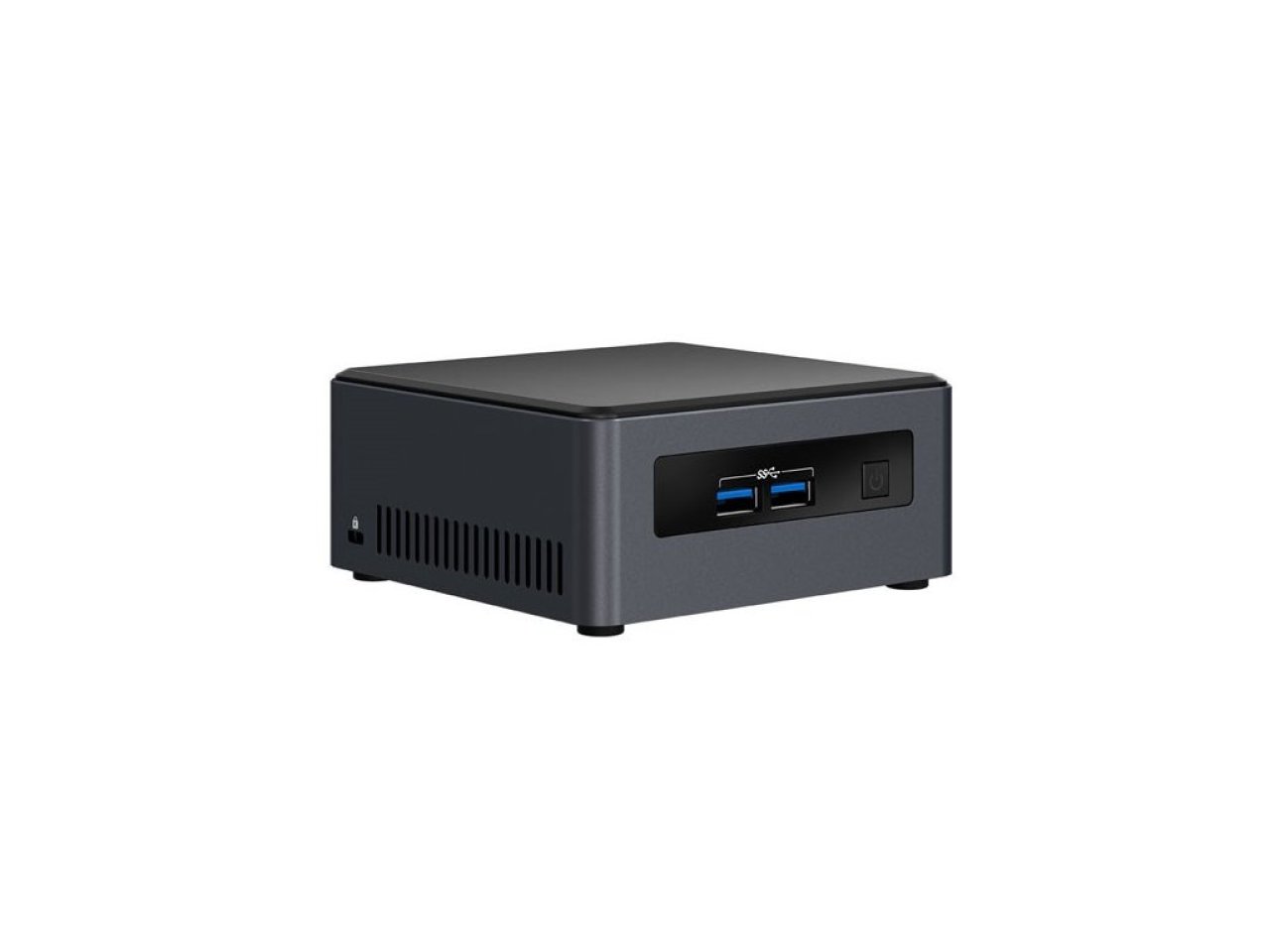

Intel 8i3BEH

INTEL NUC Bean CanyonKit NUC8i3BEHi3 Core 8109U,3.6GHZDDR4USB3.0LANWifFiHD620M.2 2,5" Specification Product: Intel® NUC Kit with 8th Generation Intel® Core™ Processors Code Name: Products formerly BEAN CANYON Supported Operating Systems: Windows 10, 64-bit Board Form Factor: UCFF 4" x 4" Internal Drive Form Factor: M.2 and 2.5" Drive Internal Drives Supported 2 Lithography 14 nm TDP : 28 W DC Input Voltage Supported 12-19 VDC Processor: Intel® Core™ i3-8109U Processor 4M Cache, up to 3.60 GHz Warranty Period 3 yrs Other features: Thunderbolt 3 40Gbps USB 3.1 Gen 2 10Gbps and DP 1.2 via USB-C Includes microSDXC card slot, dual microphones Memory & Storage Max Memory Size dependent on memory type 32 GB Memory Types DDR4-2400 1.2V SO-DIMM Max # of Memory Channels 2 Max Memory Bandwidth 38.4 GBs Max # of DIMMs 2, ECC Memory Supported ‡ No Integrated Processor Graphics Graphics Output HDMI 2.0a; USB-C DP1.2 Displays Supported ‡ 3 Expansion Options PCI Express Revision Gen3 PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes Removable Memory Card Slot microSDXC with UHS-I support M.2 Card Slot storage 22x4280 IO Specifications # of USB Ports 6 USB Configuration 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers USB Revision 2.0, 3.1 Gen2 USB 2.0 Configuration External Internal 0 2 USB 3.0 Configuration External Internal 2B 2F 0 Total # of SATA Ports 2 Max # of SATA 6.0 Gbs Ports 2 RAID Configuration 2.5" HDDSSD M.2 SATAPCIe SSD RAID-0 RAID-1 Audio back channel front channel 7.1 digital HDMI mDP; LR mic F Integrated LAN 101001000 Integrated Wireless‡ Intel® Wireless-AC MAC Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes Additional Headers CEC, 2x USB2.0, FRONT PANEL Thunderbolt™ 3 Ports 1 Package Specifications Low Halogen Options Available See MDDS Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Virtualization Technology for Directed IO VT-d ‡ Yes Intel® vPro™ Platform Eligibility ‡ No TPM No Intel® HD Audio Technology Yes Intel® Rapid Storage Technology Yes Intel® Virtualization Technology VT-x ‡ Yes Intel® Platform Trust Technology Intel® PTT Yes Security & Reliability Intel® AES New Instructions Yes Stránky o produktu: https:ark.intel.comcontentwwwusenarkproducts126150intel-nuc-kit-nuc8i3beh.html Seznam kompatibility Intel NUC: https:compatibleproducts.intel.com.
