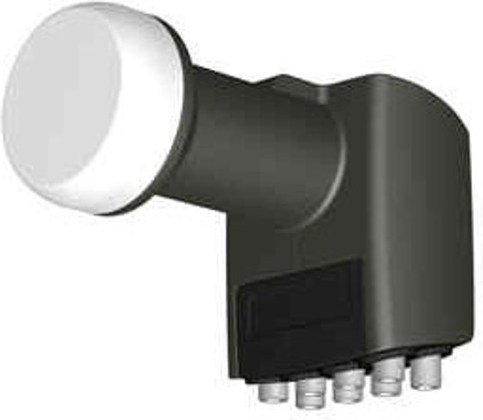

Inverto Octoblok 408OUT

Low Band Input Frequency Range

10.7 ~ 11.7 GHz



Low Band Output Frequency Range

950 ~ 1950 MHz



Low Band LO Frequency

9.75 GHz



High Band Input Frequency Range

11.7 ~ 12.75 GHz



High Band Output Frequency Range

1100 ~ 2150 MHz



High Band LO Frequency

10.6 GHz



Noise Figure

0.2 dB Typ. (0.7 dB Max.)



LO Initial Accuracy

+/- 1.0 MHz Max.



LO Temperature Drift

+/- 3.0 MHz Max.



Phase Noise (@ 10 kHz)

- 90 dBc / Hz Max.



Conversion Gain

55 dB Min.



Gain Ripple (Over 26 MHz Bandwidth)

+/- 0.75 dB



Gain Variation (Over Full Band)

+/- 4 dB Max.



Image Rejection

40 dB Min.



1 dB Compression Point (@ Output)

0.0 dBm Min.



Cross Polarization Isolation

22 dB Min.



Control Signal Ca (Vertical Polarization)

10.0 ~ 14.0 V



Control Signal Cb (Horizontal polarization)

16.0 ~ 20.0 V



Control Signal Cc (Band Switching)

22 +/- 4 kHz



Output VSWR

2.5 : 1



In-Band Spurious

- 60 dBm Max.



Current Consumption

210 mA Max. @ 11 ~ 20 V



Operating Temperature

- 30 °C ~ + 60 °C



Output Impedance

75 ?



Output Connector

F-Type (Female)



Weight

256 g
