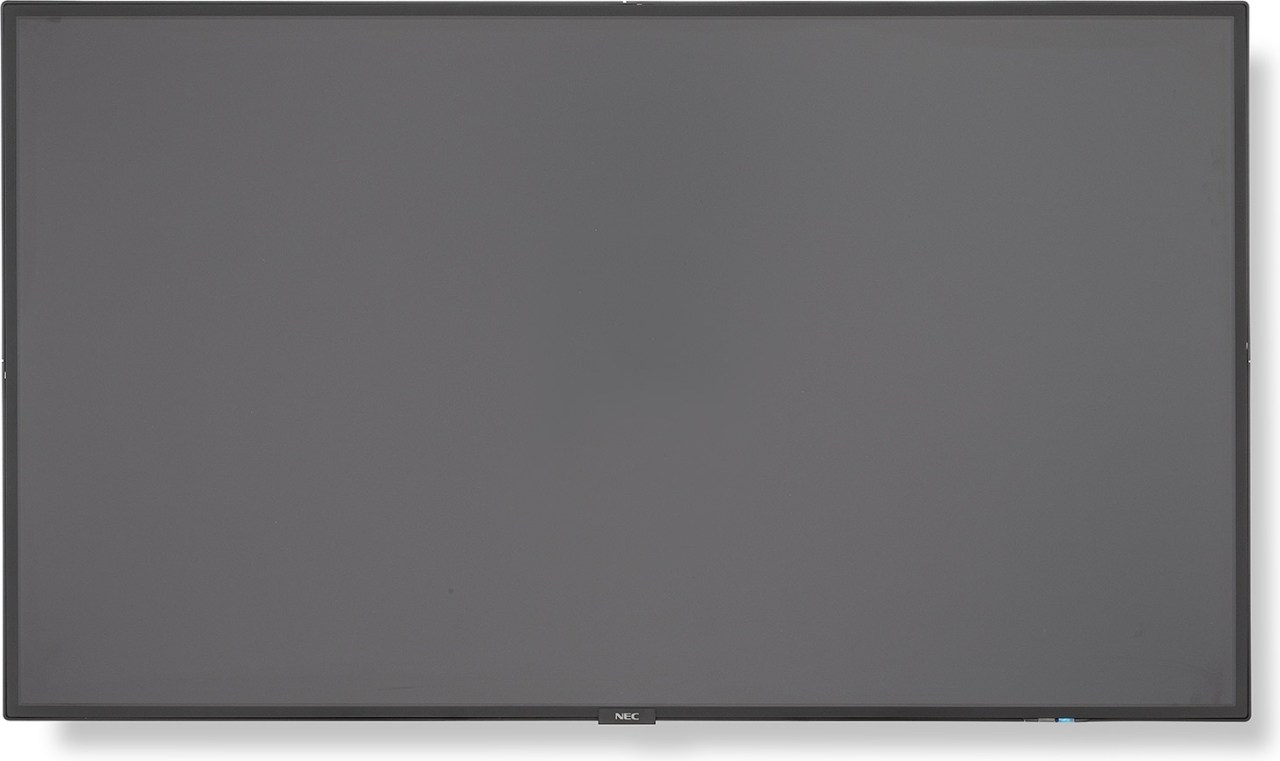

NEC V554

NEC 55" LCD V552, A-MVA3 Edge LED TFT, 8ms (grey-to-grey), 4000:1, 450 cd/m2, 178° H / 178° V (CR 10:1), Optimálne rozlišenie: 1920 x 1080, audio 2x10W,, NEC’s Dual Slot technology (volny slot pre PC, media player, DVI daisy chain.), BEZ PODSTAVY Technical Specification NEC MultiSync V552 DISPLAY Panel Technology AMVA3 with Edge LED backlights Active Screen Area (W x H) [mm] 1,209.6 x 680.4 Screen Size [inch/cm] 54.5 / 138.8 Aspect Ratio 16:9 Brightness (shipping) [cd/m2] 320, (450 max) Contrast Ratio (typ.) 4000:1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Response Time (typ.) [ms] 8 (grey-to-grey) Panel Refresh Rate [Hz] 60 SYNCHRONISATION RATE Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital) Vertical Frequency [Hz] 25.2 - 85 RESOLUTION Native Resolution 1920 x 1080 at 60 Hz Supported on digital and analogue inputs (PC) 1024 x 768; 1140 x 900; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600 Supported on digital inputs (Video) 1280 x 720p (50)16:9; 1920 x 1080i (59.94/60)16:9; 1920 x 1080p (23.97/24) 16:9; 1920 x 1080p (25)16:9; 1920 x 1080p (29.97/30)16:9; 1920 x 1080p (50) 16:9; 1920 x 1080p (59.94/60)16:9; 720 x 480p (59.94/60)16:9; 720 x 576p (50) 16:9 CONNECTIVITY Input Video Analogue 1 x D-sub 15 pin; Composite (BNC); RGBHV for PC and Component/Composite (BNC) Input Video Digital 1 x DVI-D (with HDCP); 1 x HDMI 1.3; 1 x DisplayPort Input Audio Analogue 1 x 3,5 mm jack Input Audio Digital Display Port; 1x HDMI Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232 Output Video Digital DVI-D Output Audio Analogue 3,5mm jack Output Control RS232 Remote Control LAN with SNMP; RS-232C (9-pin D-sub) Input and Output; Remote Control IR (internal/external (optional) sensor) OPTION SLOT Slot Technology STv2 (compatible with Intel / NEC OPS standard) Inrush Current [A] max. 10 Power Consumption [W] max. 61 Voltage / Current [V/A] 16/4 ELECTRICAL Power Consumption on Mode [W] 185 shipping; 280 (max.) Power Savings Mode [W]< 0.5 (ECO Standby); < 1 Power Management VESA DPMS ENVIRONMENTAL CONDITIONS Operating Temperature [°C] +0 to +40 Operating Humidity [%] 20 to 80 Storage Humidity [%] 10 to 90 Storage Temperature [°C] -20 to +60 MECHANICAL Dimensions (W x H x D) [mm] With stand: 1,249.7 x 720.5 x 63.5 Weight [kg] With stand: 26.5 Bezel Width [mm] 18.3 (left and right); 18.3 (top and bottom) VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6 AVAILABLE OPTIONS Option Slot HDSDI 1.5 and 3G; Intel Atom, Celeron and Core CPUs Accessories Feet (ST-4020); Speaker (SP-RM1); Wall mount (PDW 32-70 L+P); Wall mount (PDW S 32-55 L and P) ADDITIONAL FEATURES Colour Versions Black Front Bezel, Black Back Cabinet Safety and Ergonomics CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; PSB; VCCI; RoHS Plug and Play VESA DDC2Bi Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W) Shipping Content Display; DVI-D cable; Power Cable; Free LAN control software (download); Remote Control Warranty 3 years warranty incl. backlight.
