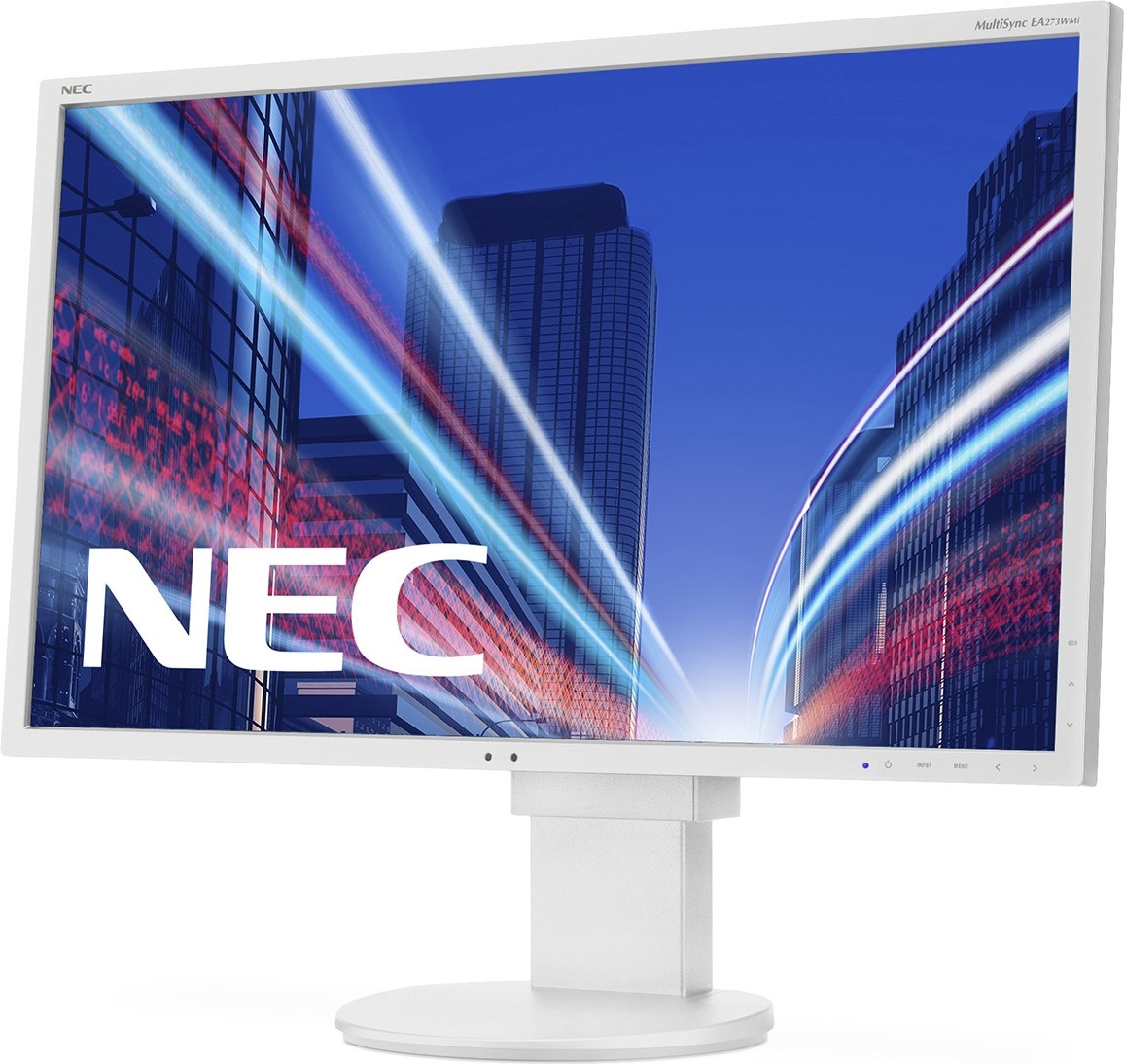

NEC EA273WMi

LCD/LED monitory, NEC , 60003608 , NEC MultiSync LCD EA273WMi, 27" IPS W LED, 0.311mm, 178?/1780? pri 10:1, 250 cd/m2, 1000:1, (25000:1), 5ms , 1920 x 1080 @ 60 Hz, DisplayPort + DVI-D (HDCP)+ HDMI + VGA, audio, USB(1+4), sRGB, Dynamic Visual Mode, NaViSet, TCO 99/03, certifikat ISO-13406-2, TORO design, Black/Black, ErgoDesign: Height adjustable stand (130 mm), swivel (340°), and portrait (90°), Full HD
Technical Specification NEC MultiSync EA273WMi
DISPLAY
Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 27 / 68.6
Screen Aspect Ratio 16:9
Pixel Pitch [mm] 0.311
Brightness (typ.) [cd/m2] 250
Contrast Ratio (typ.) 1000:1 (25000:1 dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 5
Colours [Mio.] 16.77
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 56 - 75
RESOLUTION
Optimum Resolution 1920 x 1080 at 60 Hz
Supported 1920 x 1080; 1600 x 1200; 1280 x 1024; 1152 x 864; 1024 x 768;
832 x 624; 800 x 600; 640 x 480
CONNECTIVITY
Digital 1 x DVI-D (with HDCP); 1 x HDMI; USB ver. 2.0 (1 down / 4 up); 1 x
DisplayPort
Analog 1 x mini D-sub 15 pin
ELECTRICAL
Power Consumption on Mode [W] tbd
Power Savings Mode [W] < 0.5
Power Supply 100-120 V/220-0 V; tbd; internal power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
ERGONOMICS
Height adjustable stand [mm] 130
Screen Tilt [°] 5 to 30
Screen Tilt / Swivel [°] 170 to 170
Screen Rotate [°] 0 to 90 (landscape to portrait mode)
MECHANICAL
Dimensions (W x H x D) [mm] 639.3 x 418 x 230
Weight [kg] tbd
VESA Mounting [mm] 100 x 100
ADDITIONAL FEATURES
Colour Versions White Front Bezel, White Back Cabinet; Black Front Bezel, Black
Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play VESA DDC/CI; DDC2B/2Bi; EDID Standard
Audio 1W + 1W (De-activateable); Headphone Jack
Adjust Functions Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour
Temperature Control; Contrast; Control Sync; DV Mode; EcoMode;
Fine Adjust (analog); Human Sensing; Intelligent Power
Management; Language Select; Monitor Information; NTAA (Non-
Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One
Touch Recovery; Power-Off Timer; sRGB
Shipping Content Monitor; Power Cable; Control Sync Cable; USB Cable; Audio Cable;
CD-ROM; Sales Office List; User Manual
Signal Cable: VGA - VGA; DVI-D - DVI-D
Safety and Ergonomics Energy Star 6.0; EPEAT™ Gold; CE; ErP; TCO 6.0; TÜV
Ergonomics; TÜV GS; FCC Class B; PCT/Gost; UL/C-UL or CSA;
ISO 9241-307 (pixel failure class I); MPR II/ MPR III; RoHS
Warranty 3 years warranty incl. backlight
