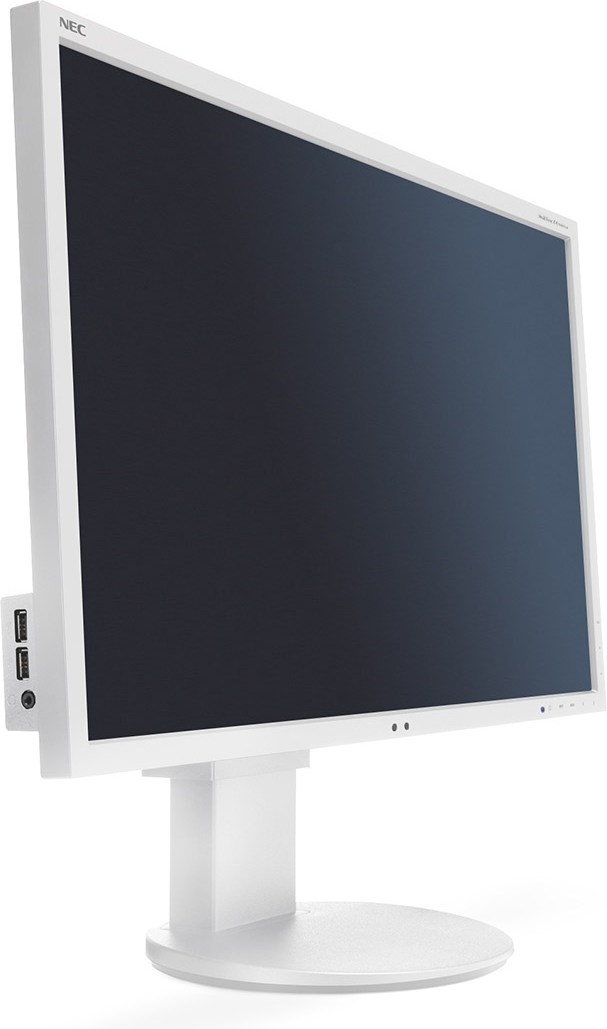

NEC EA244WMi

NEC MultiSync LCD EA244WMi-BK, 24" W-LED IPS, 0.27mm, 178?/178? pri 10:1, 350 cd/m2, 1000:1, 5ms , 1920 x 1200 @ 60 Hz, DVI-D+HDMI+DP+VGA, USB (4+1), audio, Dynamic Visual Mode, NaViSet, TCO 5.2, certifikat ISO-13406-2, Black/Black, ErgoDesign: Height adjustable stand (130 mm),

Technical Specification NEC MultiSync EA244WMi
DISPLAY
Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24.1 / 61.13
Screen Aspect Ratio 16:10
Pixel Pitch [mm] 0.270
Brightness (typ.) [cd/m2] 350
Contrast Ratio (typ.) 1000:1 (25000:1 (typ.) dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 5
Colours [Mio.] 16.77
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 77
Vertical Frequency [Hz] 56 - 60
RESOLUTION
Optimum Resolution 1920 x 1200 at 60 Hz
Supported 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 900;
1400 x 1050; 1366 x 768; 1360 x 768; 1280 x 1024; 1280 x 960;
1280 x 768; 1280 x 720; 1024 x 768; 800 x 600; 640 x 480
CONNECTIVITY
Digital 1 x DVI-D (with HDCP); 1 x HDMI; USB ver. 2.0 (4 down / 1 up); 1 x
DisplayPort
Analog 1 x mini D-sub 15 pin
ELECTRICAL
Power Consumption on Mode [W] 21 (typ.); 16 (Eco Mode); 29 (max.)
Power Supply internal power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
ERGONOMICS
Height adjustable Stand [mm] 130
Screen Tilt [°] -5 to +30
Screen Tilt / Swivel [°] -170 to +170
Screen Rotate [°] 0 to 90 (landscape to portrait mode)
MECHANICAL
Dimensions (W x H x D) [mm] 556.2 x 408.9 x 230
Weight [kg] 7.6
VESA Mounting [mm] 100 x 100
ADDITIONAL FEATURES
Cable Management yes
Kensington security slot yes
Plug and Play VESA DDCi; VESA DDC2B
Audio Integrated Speakers (1 W + 1 W); Headphone Jack
Adjust Functions Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour
Temperature Control; Contrast; Control Sync; DV Mode; EcoMode;
Fine Adjust (analog); Human Sensing; Intelligent Power
Management; Language Select; LED Brightness; Monitor
Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-
Display (OSD) lock-out; One Touch Recovery; Power-Off Timer;
sRGB
Shipping Content Monitor; Power Cable; Control Sync Cable; USB Cable; Audio Cable;
CD-ROM; Sales Office List; User Manual
Signal Cable: VGA - VGA; DVI-D - DVI-D
Safety and Ergonomics EPEAT™ Gold; CE; TCO 5.2; TÜV Ergonomics; TÜV GS; GEEA/
Energy Label; Energy Star 5.0; FCC Class B; PCT/Gost; UL/C-UL or
CSA; ISO 9241-307 (pixel failure class I); MPR III; RoHS
Warranty 3 years warranty incl. backlight
